New Fisherbrand Water Purification Systems
Ultrapure Water Systems

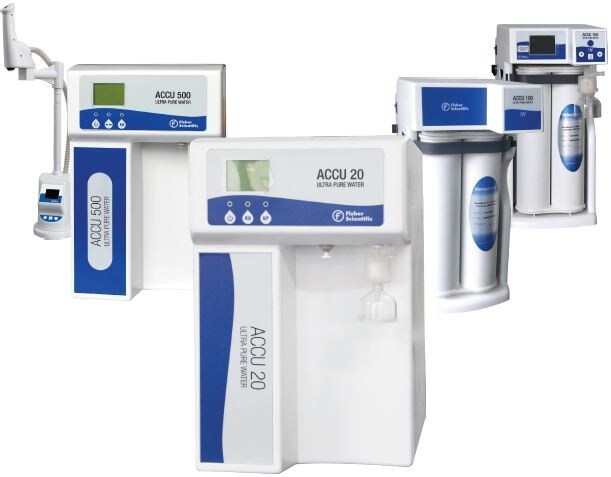

ACCU20, ACCU100, ACCU500
Focus on Fisherbrand for your complete water purification needs
Our new range of Fisherbrand water purification systems provide Type 1 water suitable for a wide range of applications such as High Performance Liquid Chromatography (HPLC), GC, AAS, immunocytochemistry, mammalian cell culture and plant tissue culture.
The ACCU20 produces 0.5 to 0.6L/minute of Type I ultrapure water on demand and is the system of choice for researchers requiring less than 20L/day. It also features no external storage tank, which eliminates the risk of water degradation by contaminants from the container or the tubing.
The ACCU100 produces Type I ultrapure water from RO, distilled or deionised water. It can produce up to 1.5L/minute of ultrapure water and up to 100L per day.
Finally for higher volume requirements, there is the ACCU500, which is able to produce up to 500L per day. For added flexibility both the ACCU100 and ACCU500 water purification systems have the option of being equipped with up to two remote dispensers.
All three models are easy to install, use and maintain and come with a two year warranty for added piece of mind.
ACCU20 Ultrapure Water Systems
Produce Type I ultrapure water and reverse osmosis (RO) water on demand from tap
The small footprint ACCU20 system is an ideal choice for users who need up to 20 litres of ultrapure water or RO water per day. Quality of ultrapure product water meets or exceeds ASTM, CLSI, CAP, and ISO Type I water standards.
- This compact system provides an easy way to produce ultrapure water or RO water on demand from tap water directly with no additional pre-treatment filters
- The system is equipped with a safeguard ACCUDuo ‘P’ pack cartridge and a dual-column ACCUDuo ‘U’ pack ultrapurification cartridge to ensure optimum quality of the final product water
- No external storage tank is required, which eliminates the risk of water degradation by contaminants from the container or the tubing
- The fully automatic controlled and maintained system contains automatic cleaning cycles and self-maintenance functions for the RO membrane, which increases the lifetime and efficiency of the RO membranes as well as the cartridges
- RO membrane, which increases the lifetime and efficiency of the RO membranes as well as the cartridges
- Automatic hourly system recirculation in the loop prevents bacterial growth and maintain water purity at all times
- System status and key quality parameters are clearly displayed on large LCD screen for easy system performance monitoring
Applications:
Ultrapure water can be used in many areas. Here are some typical applications:
- HPLC mobile phase preparation
- Preparation of reagent blank solutions
- As sample diluent for GC, HPLC, AA, ICP-MS and other analytical techniques
- Preparation of buffers and culture media for mammalian cell culture
- Preparation of molecular biology reagents, etc.
Specifications
Feed Water Requirements | |
---|---|
Tap water | Municipal water, TDS<500ppm (1000 μS/cm) |
Operating temperature | 5-45°C |
Feed water pressure | 15-90psi (1-6 bar) |
Product Water Flow Rate | |
RO water (@25°C) | >0.5L/min |
Ultrapure water ( Type I ) (@25°C) | >0.5L/min |
Produce Water Quality | |
RO water conductivity (@25°C) | Typically <20μS/cm |
Ultrapure water resistivity (@25°C) | 18.2 MΩ·cm |
TOC | <10ppb (<5ppb with a dual wavelength UV lamp in UV Model ) |
Particles in ultrapure water (>0.2μm) | <1/mL (with a 0.2μm final filter or terminal ultrafiltration cartridge) |
Microorganisms | <0.1 cfu/mL (with a 0.2μm final filter or terminal ultrafiltration cartridge) |
Pyrogens (endotoxins) | <0.001 Eu/mL ( with a terminal ultrafiltration cartridge ) |
Dimensions | |
Length × Depth × Height | 30cm × 51cm × 48cm |
ACCU100 Ultrapure Water Systems
Ultrapure water for critical laboratory applications
Produces Type I ultrapure water from RO, distilled or deionised water. Product water quality meets or exceeds CLSI and CAP Type I water standards.
The system is CE and FCC certified

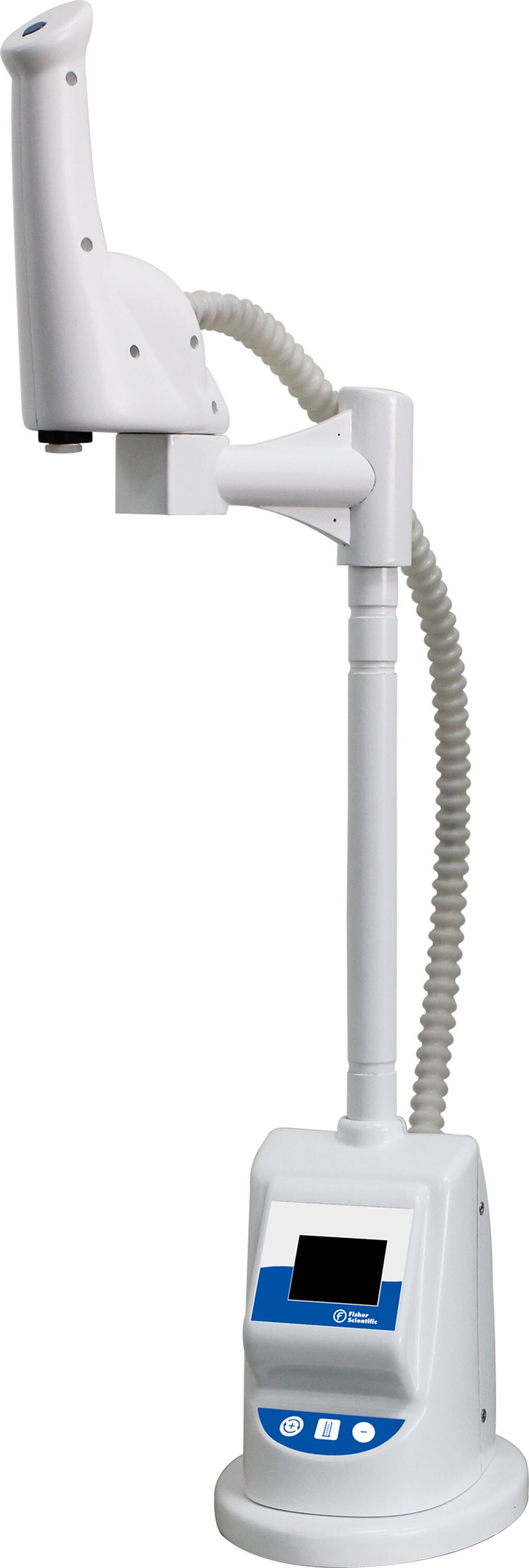

Independent ultrapure water dispenser
- The remote dispenser has a built-in high precision resistivity sensor with cell constant of 0.01cm-¹ to measure the quality of ultrapure water just prior to the dispensing point
- Volumetric dispensing and calibration
- The handle is 360 degree-rotatable and detachable from its support for effortless and instant dispensing with maximum flexibility
Multi-functional control panel
- Volumetric dispensing and calibration
- Alarms and maintenance information on a large colour LCD screen
- Real-time monitoring of system status:
- Product water quality/resistivity
- Cartridge/UV lamp remaining service life
ACCUQuatro U Pack
- The patented large capacity ultrapurification cartridge
- Minimal dead water volume
- Production of ion-free and organic-free ultrapure water
- Choices of ultrapurification cartridges for feed water types
Specifications
ACCU100 | ACCU100 UV | |
---|---|---|
Feed Water Requirements | ||
Feed water | EDI water, RO water, distilled water, deionised water | EDI water, RO water, distilled water, deionised water |
Operating temperature | 5-45°C | 5-45°C |
Feed water pressure | 0-15psi (0-1bar) | 0-15psi (0-1bar) |
Product Water Quality | ||
Flow rate (@25 °C ) | 1.0-1.5L/min | 1.0-1.5L/min |
Resistivity (@25°C ) | 18.2 MΩ·cm | 18.2 MΩ·cm |
TOC level | <5 ppb | <10 ppb |
Particles (> 0.2 μm) | <1 /mL | <1 /mL |
Microorganisms | <0.1cfu/mL | <0.1cfu/mL |
Pyrogens (endotoxins) | <0.001Eu/mL (with a terminal ultrafiltration filter) | <0.001Eu/mL (with a terminal ultrafiltration filter) |
Dimensions | ||
Length × Depth × Height | 21 cm × 35 cm × 44 cm | 21 cm × 35 cm × 44 cm |
Net weight (operation weight) | 6 kg (10.5 kg) | 7 kg (11.5 kg) |
ACCU500 Ultrapure Water Systems
Produces ultrapure and reverse osmosis (RO) water from tap water directly
Quality of ultrapure water meets or exceeds ASTM, CLSI, CAP, and ISO Type I water standards.
The system is CE and RoSH certified
- The fully automated control system contains pre-rinse, a ‘flush’ feature preventing RO membrane fouling, RO membrane and cartridge life monitoring as well as many other programs for convenient operation
- The pre-rinsing program starts automatically once a new RO membrane is installed so there is no need for user to set additional cleaning procedures
- Two sets of dual-column purification cartridges work sequentially to ensure thorough removal of ions and organics in water
- Automatic hourly system recirculation prevents bacterial growth
- Resistivity is measured by a highly sensitive resistivity sensor
- Electrical and water compartments are completely segregated, thus safer to operate
- User can set water dispensing time for easy water collection
- Both RO and ultrapure water can be dispensed from the water system
- The system can be fitted with a 30L or 60L PE tank with a liquid level sensor and a tank vent filter with CO² scavenger to protect purified water from atmospheric degradation
- A 0.2μm filter or ultrafiltration filter (optional) removes final contaminants
- Independent ultrapure water dispenser
- The remote dispenser has a built-in high precision resistivity sensor with cell constant of 0.01cm-¹ to measure the quality of ultrapure water just prior to the dispensing point
- Volumetric dispensing and calibration
- The handle is 360 degree-rotatable and detachable from its support for effortless and instant dispensing with maximum flexibility
Applications:
Ultrapure and RO water can be used in many areas. Here are some typical applications.
Ultrapure water
- HPLC mobile phase preparation
- Preparation of reagent blank solutions
- As sample diluent for GC, HPLC, AA, ICP-MS and other analytical techniques
- Preparation of buffers and culture media for mammalian cell culture
- Preparation of molecular biology reagents, etc.
RO water
- Glassware cleaning
- Washing machine for glassware
- Waterbath water
- Autoclavin
Specifications
Feed Water Requirements | |
---|---|
Tap water | Municipal water, TDS<1000ppm (2000 μS/cm) |
Operating temperature | 5-45°C |
Feed water pressure | 15-90psi (1-6 bar) |
Product Water Flow Rate | |
RO water (@25°C) | 10, 15, 20 and 30 L/hr |
Ultrapure water (Type I) (@25°C) | 1.5L/min |
Product Water Quality | |
RO water conductivity* | Typically <20μS/cm |
Ultrapure water resistivity (@25°C) | 18.2 MΩ·cm |
TOC | <10ppb (<5ppb with a dual wavelength UV lamp in UV Models ) |
Particles in ultrapure water (>0.2μm) | <1/mL (with a 0.2μm final filter or terminal ultrafiltration cartridge) |
Microorganisms | <0.1 cfu/mL (with a 0.2μm final filter or terminal ultrafiltration cartridge) |
Pyrogens (endotoxins) | <0.001 Eu/mL ( with a terminal ultrafiltration cartridge ) |
Dimensions | |
Length × Depth × Height | 30cm × 51cm × 48cm |
Dispenser: Diameter x Height | 22 cm × 74 cm |
